Leading Composite Hose Manufacturer & Distributor in China
High Temperature Hose
Name:High Temperature Hose

Applicable Stardards:

BS EN 13765

CCS Type Examination



Working Temperature Range:

 -30 to +170

Maximum Working Pressure 14 kg/cm2

Safety Factor 41 for heavy duty grades

(Burst Pressure: Working Pressure)



Size 1” to 12”


Consultation
Product Details

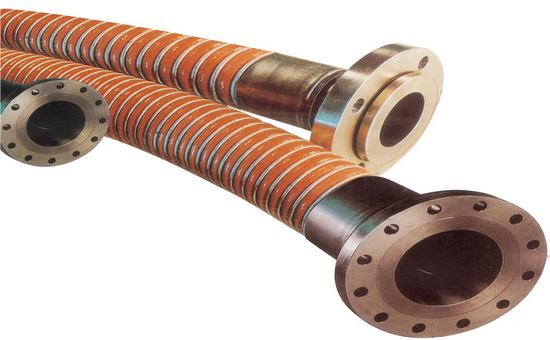

Sondaflex High Temperature is a hose designed with a combinationof layers of PP, Polyamide, PTFE and Fiberglass to withstand high temperaturesup to 170 ° C without losing its flexibility and robustness characteristics.

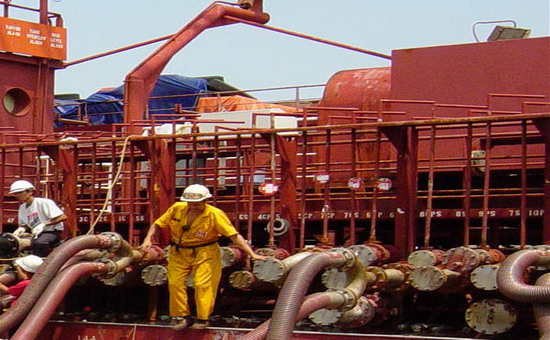

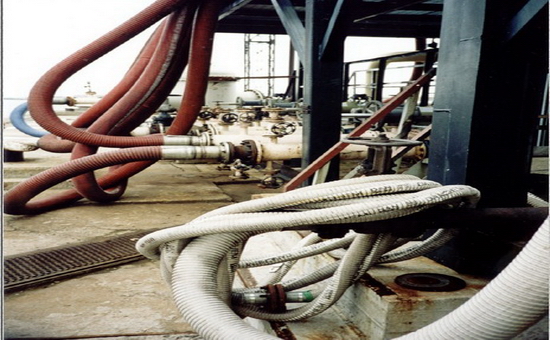

Due to its internal and external spirals in 316 stainless steelit can be used in the most extreme and corrosive external conditions. Its lightweight makes it an alternative to heavy rubber hoses for applications Such as Bitumen, hot air, thermal oil, etc. forLoading / unloading of trucks, wagons, even marine applications.

Building



Inside Spiral: Galvanized steel/ 316 Stainless Steel 316

Spiral Exterior:Galvanized steel/ Stainless Steel 316

Inner Lining: Polyamide / PTFE

Cover: Polyester / PVC Fabric

Characteristics

Standards: EN13765

Temperature range: -30 ° C to +170 ° C

Safety factor: 4: 1

Vacuum: 0.9 bar

Length rolls: 30 m. (Another, consult us)
